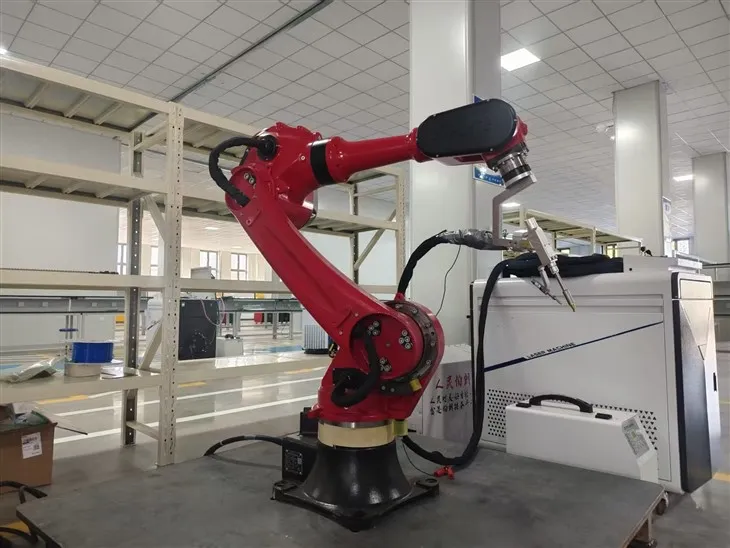

Industrial Robotic Arms Welding Machine
Automatic Laser Welding Robot 1500W 2000W 3000W
Laser welding robots can weld workpieces atany angle, suitable for welding complexwelds and various precision devices.Suitable industries:Solar Industry,Metal-working industry-Sheet Metal,Metal-working industry-die Casting&Stamping,Lithium Battery Industry,3C Industry,Building Materials Furniture,Aeronautics And Astronautics etc.
Laser welding machine
fiber laser welding machine, can weld different metals such as carbon steel, stainless steel, aluminum, etc.
Robot control cabinet
The robot control cabinet has a power switch, emergency stop button, power input interface, and a servo module power supply inside.
The teaching pendant
The teaching pendant is used to write programs and save programs and data
Water Chiller:• Automatically adjust the temperature according to different working environment, no need to change settings parameters;
• Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics;
• Multiple alarm protection;
• CE certification; RoHS certification; REACH certification.
Six-axis Robotic Arm
The six-axis robotic arm has a maximum load of 20kg, an arm span of 1850mm, a lightweight arm design, a compact and simple mechanical structure, six degrees of freedom, and can operate flexibly in a small space.
Professional Welding Head:
Pure copper welding nozzle,integrated gas protection system.
The welding head is light and flexible,which can realize welding of any part of the workpiece.
Product Parameters
| Model | UN-1500 | UN-2000 | UN-3000 | |
| Maximum laser power | 1500 | 2000 | 3000 | |
| Laser frequency | 50-5000HZ | 50-5000HZ | 50-5000HZ | |
| Power adjustment range | 10-100% | 10-100% | 10-100% | |
| Power instability | <3% | <3% | <3% | |
| Welding penetration (stainless steel) | 2.0mm | 5mm | 8.0mm | |
| Welding penetration (carbon steel) | 2mm | 5mm | 8.0mm | |
| Welding penetration (aluminum steel) | 2mm | 5mm | 8mm | |
| Swing welding spot | Solder spot 2-4mm | Solder spot 2-4mm | Solder spot 2-4mm | |
| Input voltage | 220V/50HZ | 380V/50HZ | 380V/50HZ | |
| Total power | ≤3KW | ≤3KW | ≤3KW | |
| Automatic wire feeding | Optional | Optional | Optional |
1820A robot specifications
|
Model |
1820A |
|||||||||||||||
|
Axes |
6 axis |
|||||||||||||||
|
Loading ability |
20kg |
|||||||||||||||
|
IP code |
Body: IP40 Wrist: IP54 |
|||||||||||||||
|
Repeated positioning accuracy |
±0.05mm |
|||||||||||||||
|
Maximum arm span |
1850mm |
|||||||||||||||
|
Weight |
230kg |
|||||||||||||||
|
Max speed |
J1 |
110.2°/s |
J2 |
140.5°/s |
||||||||||||
|
J3 |
133.9°/s |
J4 |
272.7°/s |
|||||||||||||
|
J5 |
240°/s |
J6 |
375°/s |
|||||||||||||
|
Motion range |
J1 |
±155° |
J2 |
-140°/+65° |
||||||||||||
|
J3 |
-75°/+110° |
J4 |
±180° |
|||||||||||||
|
J5 |
±115° |
J6 |
±360° |
|||||||||||||
|
Mounting environment |
Operating temperature： 0℃~40℃ Best temperature：15℃~25℃ Relative humidity：20~80% RH(No condensation) |
Mpa |
0.5~0.7 MPa |
|||||||||||||
|
Power supply |
220V±10％ 50Hz/60Hz |
|||||||||||||||
|
Allowable torque |
J4 |
52N*m |
J5 |
56N*m |
J6 |
51.2N*m |
||||||||||
|
Allowable moment of inertia |
J4 |
0.664048kg*m2 |
J5 |
1.12kg*m2 |
J6 |
0.3968kg*m2 |
||||||||||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
||||||||||||
|
Casting body |
BORUNTE |
|||||||||||||||
|
Servo motor |
BORUNTE |
|||||||||||||||
|
Reducer |
BORUNTE |
|||||||||||||||
|
Electrical component |
BORUNTE |
|||||||||||||||
|
Oil content |
J1 |
1400ML |
J2 |
1000ML |
J3 |
800ML |
||||||||||
|
J4 |
250ML |
J5 |
/ |
J6 |
/ |
|||||||||||
|
Vulnerable parts |
Timing belt |
MBT233080505 timing belt 5M-8 bandwidth -85 tooth |
||||||||||||||
|
Robot accompanying materials |
USB |
|||||||||||||||
Advantages of Robot Laser Welding Machine
Superior Quality: Small spot size (as low as 0.1mm), small heat-affected zone, precise and aesthetically pleasing welds, high strength, low defect rate, and extremely high consistency in mass production.
High Efficiency: Welding speed is 3-10 times faster than traditional processes. Robots can operate continuously for 24 hours, with high automation integration, significantly shortening production cycle time.
Wide Compatibility: Compatible with metals such as steel, aluminum, copper, and titanium, as well as dissimilar materials. Capable of handling ultra-thin parts (≥0.1mm), thick plates (≤10mm), and complex structures, offering flexible multi-angle welding.
Easy to Operate + Environmentally Friendly: Programmable preset parameters eliminate the need for professional welders; vision tracking reduces reliance on positioning; no spatter, minimal smoke and dust, and low maintenance costs (welding head lifespan exceeds 100,000 hours).
High Added Value: Facilitates lightweight production, adapts to precision manufacturing, supports digital management, and enhances product competitiveness
Samples:
Exhibition&Certifications
Company Profile
Jinan Unistar Machinery Co., Ltd. was established in 2002, experienced 15 years of development and solid operation, the company has 20 professional research senior technical engineers in the field of laser, 100 sales team, 30 domestic and foreign after-sales service team, 150 workers, with strong new product development ability, Has developed into one of the largest and most influential enterprises in the laser industry.
After Sales Service
Machine Warranty Time 3 years.
Technical engineer 24 hours online support and service .
Offer oversea learning and training.
A variety of after -sales service channels , QQ, Skype , whatsapp ,E-mail ,Viver , remote control systemOnline video conference ,Multiple ways to help customers solve problems.
Packaging & Shipping
Packaging Details
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Port:Qingdao port/ Shanghai port / Tianjin port
FAQ
1.How to choose the right to for me?
A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free
